Pegasus Astro Ultimate Powerbox v3 - PEG-UPBV3
(UPBv3 in short) is the flagship of our Powerbox series. You asked for more features in the same size, we kept our promise:
UPBv3 is a Wi-Fi and USB controlled power hub. A USB 3.1 HubĀ allows you toĀ switch on/off 8 USB ports, 8 12VĀ powerĀ outlets, 2 x Adjustable outputs (3-12V and 12-24V),Ā 3 dew heaters, a new silent low-vibration stepper controllerĀ that can drive any stepper motor in the astronomy market as well as a power relay and anĀ expansion port for devicesĀ that communicates with the UPBv3 Controller!
If you are tired of carrying multiple power packs and dealing with a mess of power and data cables, our Ultimate Powerbox v3, a sophisticated power control unit, is the āUltimateā solution. Our idea is an enclosure that makes a sufficient number of amperes available.
No cables disturb the movements of the mount and the instrument, only the main power cord and one USB data cord are attached to the Ultimate Powerbox which branches off the other cables powering all devices.
In total 8 USB ports powered ā USB 3.1 SuperSpeed Hub
A USB3.1 Hub controller ensures that this USB hub will work flawlessly from temperatures of -40Ā°C to +80Ā°C.
A neat feature is that each USB port can be switched ON/OFF individually by the software. A device was stuck and you had to re-plug the socket in the middle of a cold night? No problem! Just locate the port, click the ON /OFF switch in our software and you recycle the USB port. Simple as that!
The UPBv3 has:
- 6 x USB 3.1 Super-Speed ports
- 2 x USB 2 High-Speed ports
Each USB port providesĀ up to 2.5Amps. All USB ports include an electronic short circuit , additional Electrostatic Discharge (ESD) and overload electronic protections.
A USB3.1 Hub controller ensures that this USB hub will work flawlessly from temperatures of -40Ā°C to +80Ā°C.
A neat feature is that each USB port can be switched ON/OFF individually by the software. A device was stuck and you had to re-plug the socket in the middle of a cold night? No problem! Just locate the port, click the ON /OFF switch in our software and you recycle the USB port. Simple as that!
The UPBv3 has:
- 6 x USB 3.1 Super-Speed ports
- 2 x USB 2 High-Speed ports
Each USB port providesĀ up to 2.5Amps. All USB ports include an electronic short circuit , additional Electrostatic Discharge (ESD) and overload electronic protections.
6 x 12V DC Power outlets for your equipment
Six powerful Smart MOSFET transistors provide āelectric juiceā to your precious equipment. Sophisticated short circuit and overload per port protections cut the power and report the incident into our software. Every MOSFET is capable to provide up to 6 Amps of current.
Metal premium quality output sockets ensure that will provide all the juice you need and can secure in place your extension power cables
Built-in Power Sensors
A preciseĀ voltmeterĀ and anĀ amp meterĀ (can measure up to 20A) measure and display in real-time your power input. If the input is more than 14.5V the power is instantly cut off to protect your equipment.
Individual Current Meter per 12V smart outputs.
Each smart 12V output has an internal and independent digital current meter. You can view each portās power consumption in the software.
Additional Power Outputs and Sensors
2 x Always ON 12VĀ outputs increase the total 12V outputs to 10. In combination with the 2 x adjustable outputs (if configured to 12V) the total 12V outputs can be summed to 10 Outlets.
1 xĀ Adjustable Voltage Step DownĀ output can be regulated from 3V ro 12V of and provide up to 3 Amps.

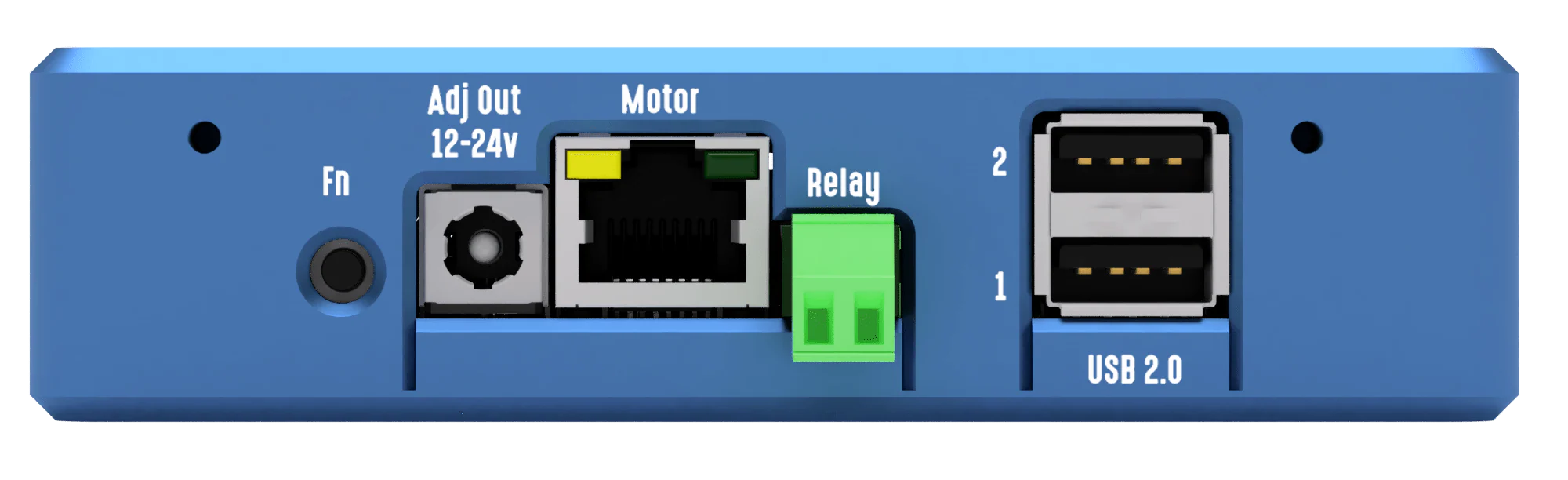

1 xĀ AdjustableĀ Voltage Step UpĀ output can be regulated from 12V to 24V and provide up to 4 Amps.
1 xĀ Switch RelayĀ can pass 250V / 10A and used to switch ON/OFF any 3rd party equipment.
AĀ built-in ambient temperature and relative humidity sensorĀ provides frequently readouts of the environmental conditions and automatically adjusts the heat intensity of your Dew strips.
Embedded Stepper Motor Controller
A silent and low vibrating stepper motor controller will precisely move your drawtube of your focuser. The controller drives a Pegasus Motor Focus Kit or any other stepper motor in the market (Unipolar or Bipolar) e.g. Rigel, Robofocus, Moonlight, Starlight motors.
Backlash compensation is already implemented in the firmware and can be enabled, tuned and disabled from the software. A fully ASCOM6 focuser driver is already available.
Supported Stepper Motors
Make sure you have the correct cable for your motor. Every manufacturer uses its own pinout. Contact us if you have any question for the type of your motor.
| Pegasus Motor Focus Kit (v1/v2) | Requires RJ45 to RJ45 common straight network cable |
| Robofocus | Ask for cable: PEG-CMOT-RJ45DB9 |
| Moonlite | Ask for cable: PEG-CMOT-RJ45DB9 |
| Lakeside | Ask for cable: PEG-CMOT-RJ45DB9 |
| Starlight HSM 20,30,35 | Ask for cable: PEG-CMOT-HSM |
| Starlight MSM 20,30,35 | Ask for cable: PEG-CMOT-MSM |
| Starlight Ā DirectSync motors | Ask for cable: PEG-CMOT-HSM |
| Starizona Microtouch | Ask for cable: PEG-CMOT-MSM |
| Optec DirectSync or Quicksync motors | Ask for cable: PEG-CMOT-HSM |
| Rigel nStep motor | Ask for cable: PEG-CMOT-MSM |
| Starlight POSI Drive Motor | Ask for cable: PEG-CMOT-HSM |
| Lacerta Motor | Ask for cable: PEG-CMOT-LCRT |
Ā
Vesa compatible enclosure
The UPBv3 enclosure is compatible with VESA mounts. Available screw holes allow an e.g. Intel NUC to be stacked up with the Ultimate Powerbox v3.
Supported By
ASCOM 6
Ultimate powerbox fully supports ASCOM6. In combination with our Unity Software which acts as a server, you can use our latest ASCOM 6 supplied drivers to:
- Control Stepper Motor (ASCOM Focuser)
- Pass environmental settings to supported software (e.g Sequence Generator Pro / MaximDL /NINA ) (ASCOM Observing Conditions)
- Switch ON or OFF all 12V outputs or USB Ports (ASCOM Switches ā NINA/ MaximDL)
INDI
Ultimate Powerbox v3 is fully supported by INDI and INDIGO
- Indigo:Ā http://www.indigo-astronomy.org
- Indilib:Ā https://indilib.org/devices/auxiliary/pegasus-ultimate-power-box.html
StellarMate
RPI3 & RPI4
Support at N.I.N.A.
The Ultimate Powerbox v3 is fully supported at NINA.
Ā
