Baader Wide T-Ring Sony Alpha and Minolta Maxxum with D52i to T-2 and S52 - 2408334

Highlights

• Baader Wide-T-Ring to connect Minolta DSLR cameras on the Astro T-2 system

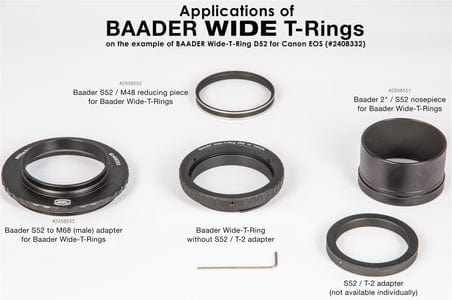

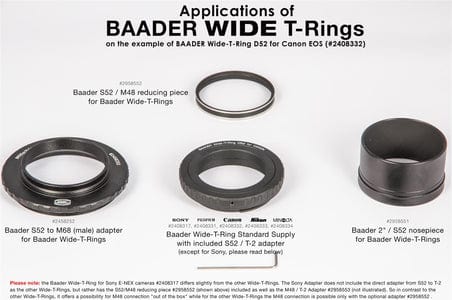

• All Baader Wide-T-rings have an S52 dovetail in addition to the inserted T-2 ring. This allows the T-ring to be modified to an M48 female thread using the S52 / M48 adapter #2958552, or to use the S52 barrel #2958551 without the T-2 reduction. With the S52 / M68 adapter # 2458252, the Wide-T-Ring can be directly attached to an M68 male thread to securely fasten your camera to the widest possible aperture.
• All Baader Wide T-rings can be directly adapted to an UFC (Universal Filter Changer) with the optional Baader UFC S52 dovetail camera-adapter (#2459119), in order to change different filter sizes directly in front of the camera sensor.
• Furthermore, the illumination of the camera chips improved significantly, mainly because of the larger clear aperture.
• On the camera side: Minolta AF Bayonet
• Telescope side: S52 dovetail clamp incl. S52/T-2 internal thread with 0.75mm pitch

Specifications

Manufacturer	Baader Planetarium
SKU (#)	2408334
EAN Code	4047825040794
Weight (kg)	0.052
Optical length (mm)	8,3
Usage	to connect (D)DSLR cameras to the Astro T-2 thread system
Camera Adaptable	Minolta AF
Inner Diameter / Clear Aperture (mm)	41 (T-2) / 44,7
Outer Diameter	63
Inner Connection (lens sided)	S52, T-2 (M42 x 0,75)
Outer Connection (eyepiece/-camera-sided)	Bayonet
Compatible Brands	Astro T-2, Baader Planetarium, Other
Type of Adapter	Camera Adapter
